Products

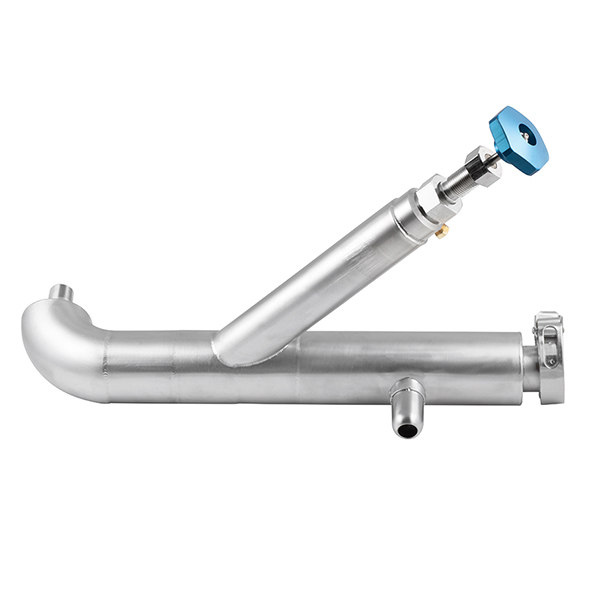

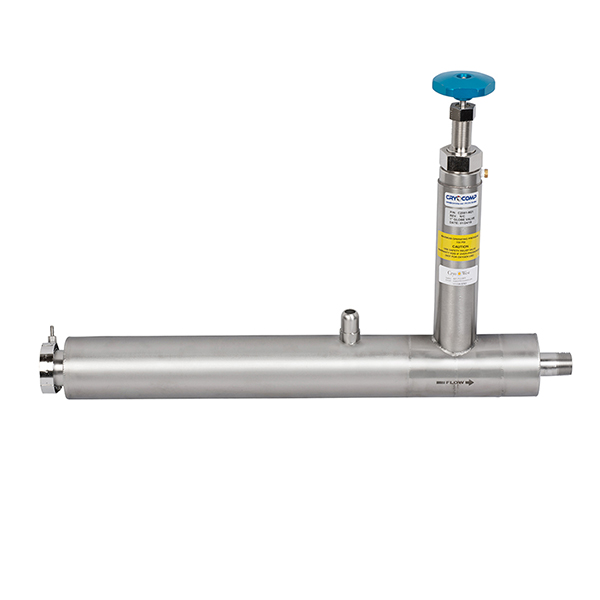

Vacuum Jacketed Piping
Key Features
- 300 series stainless steel
- Static and dynamic designs
- Close fit bayonet connections
- Modular accessories: elbow, tees, crosses
Applications
- Cryogenic liquid transfer (bulk storage to local storage or use point)
- Process cooling systems (Polycold, refrigeration, flash freezing)
- Semiconductor tools
Industries Served
- Semiconductor tool manufacturers
- Research laboratories
- Biomedical
- Cryotherapy
- Food and Beverage

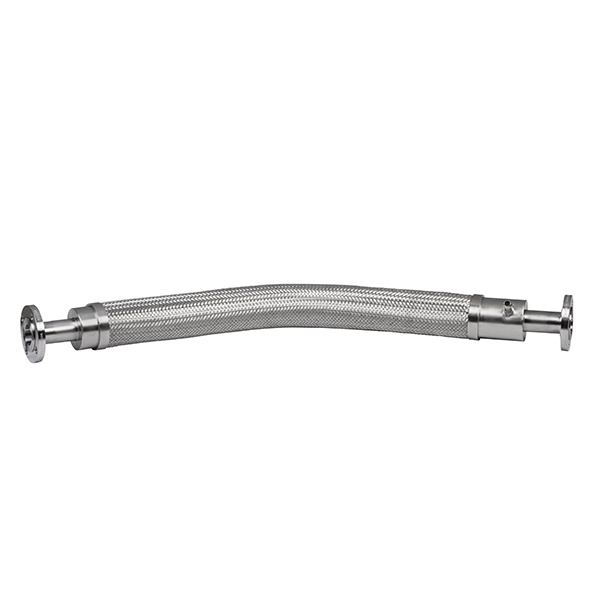

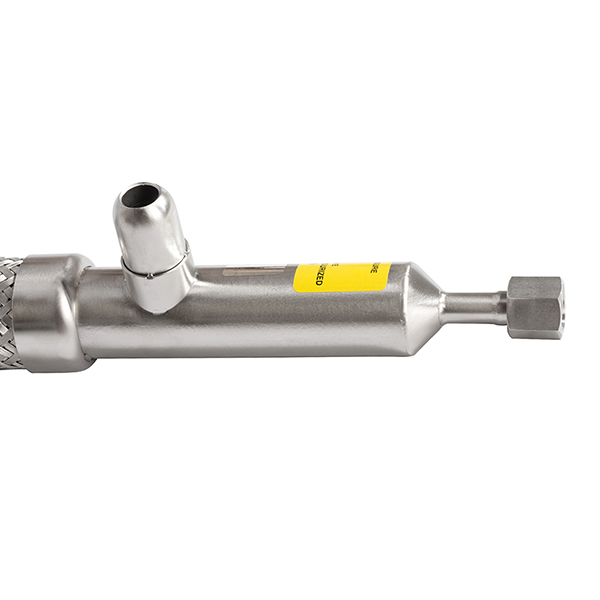

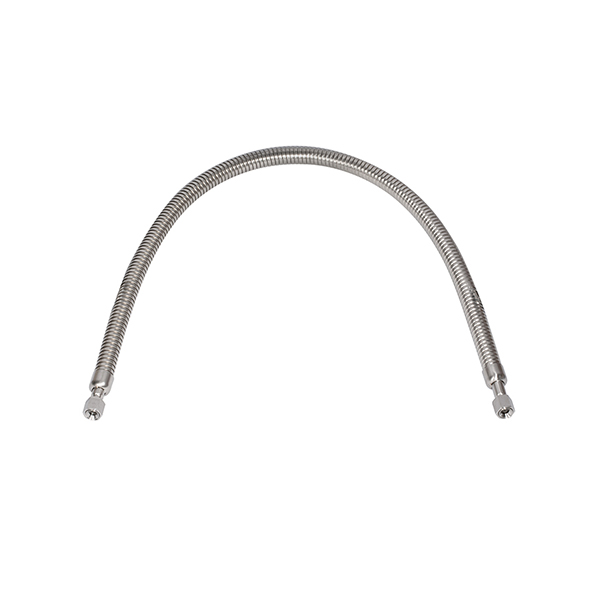

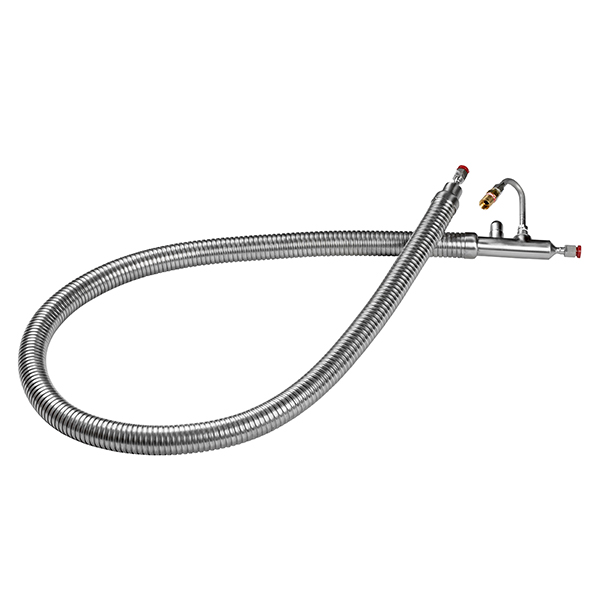

Vacuum Jacketed Flexible Transfer Hoses
High quality cryogenic insulation provides frost free transfer of liquid nitrogen (-321F/-196C) from storage vessel to point of use equipment.
Key Features
- CryoWest VJ flex hoses are fabricated of 300 series stainless steel and are available in ¼” through 2″ inner diameter sizes.
- End connections are available in any combination of female flares, compression fittings, flanges, and tube stub ends.

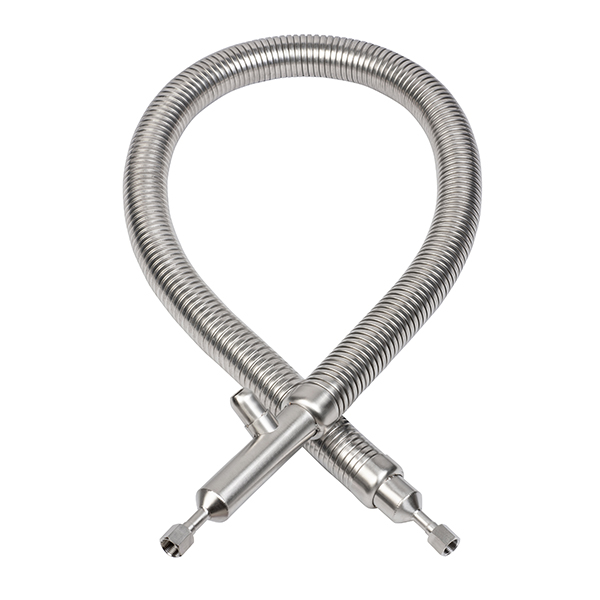

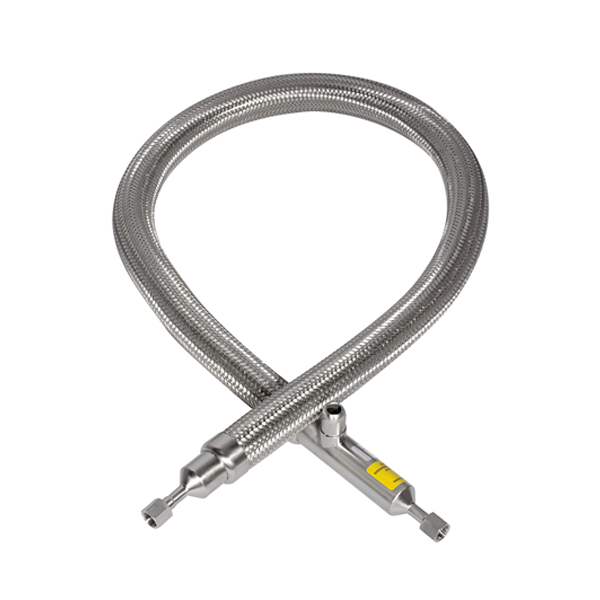

- Protective outer coverings come in either flex braid or spiral wrap armor.
- We stock standard lengths for immediate shipment in both ⅜” and ½” inner diameters. Standard lengths come in 2 through 12 feet (even sizes).
Technical Features
- MAWP 150 PSI
- He leak test rated 1X10-9
- Cleaning for oxygen service is available upon request
OEM / Custom Applications
Custom

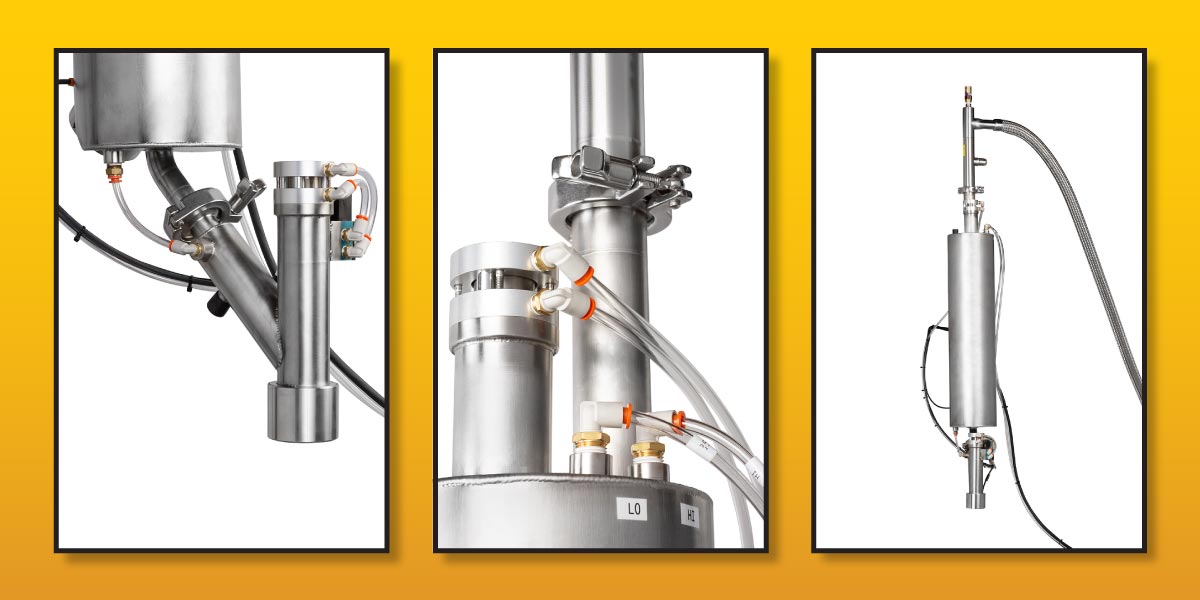

- LN2 Dosers (Injectors)
- Valve Boxes
- Rigid Manifolds

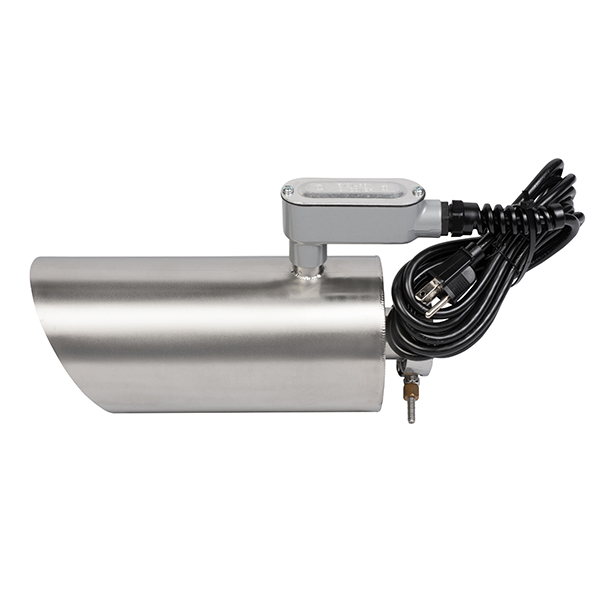

- Venting Devices
- VJ Flex Hoses
- OEM Hoses
- Expansion Joints
- Cryogenic Liquid Level Sensing Systems
Phase Separators

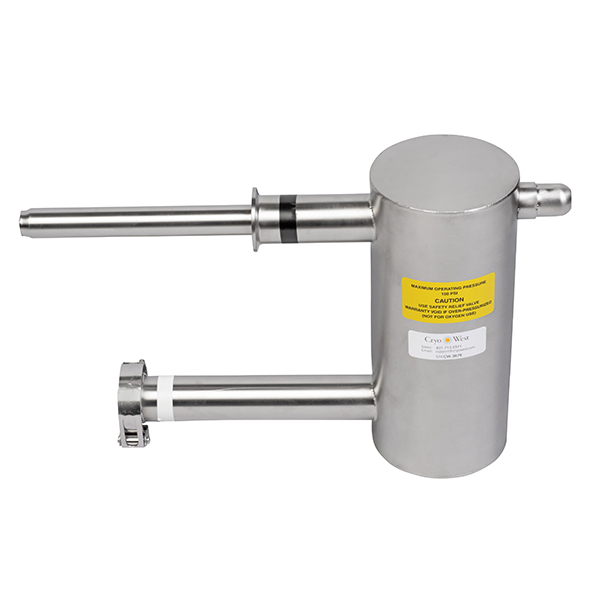

Liquid Nitrogen Phase Separator
Our phase separator is a vacuum jacketed vessel constructed primarily of 304 stainless steel. It is designed to separate nitrogen gas from liquid nitrogen. The inner reservoir vents nitrogen gas to atmosphere, while storing LN2. Gravity feeds saturated liquid nitrogen to use point by way of flexible vacuum jacketed phase separator drop lines.
